SMALLER THAN LIFE

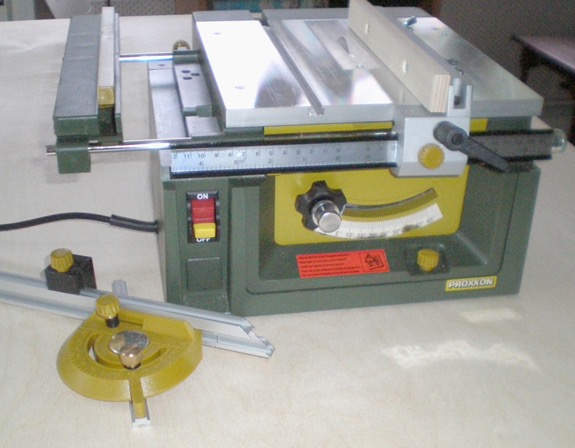

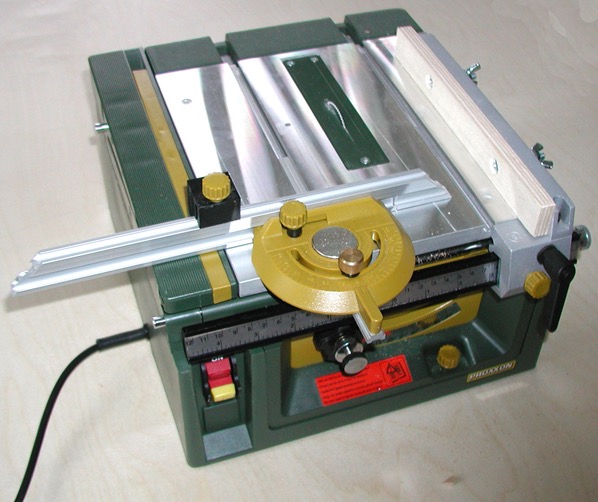

PROXXON Tilting Arbor Table Saw FET
The
ideal tool for straight, miter and bevel cuts. Usable on any wood type,
non-ferrous metal or plastic. This saw is suitable for all of all
your scale miniature work from crown moldings to tiny quarter scale
accessories.
It is so versatile and durable that it is frequently used by
model builders, toy makers, architects and even cabinetmakers. The smallest
items may be cut cleanly, safely and accurately. The Proxxon FET routinely cuts
parts to within a few thousands of and inch leaving an edge that requires no
sanding with low noise levels and little vibration.
Used
by miniaturists, ship modelers and others who need to make small accurate
parts. This machine that has become a standard of excellence in Europe is now
available in the United States for 120 volt power. For cutting wood,
non-ferrous metals, plastics, Plexiglas, glass fiber reinforced sheets, foam
and many other materials. Stable construction because load bearing parts and
plane-milled table are made of die-cast aluminum. The longitudinal stop on the
miter gage that is used for crosscuts can be precisely set by using the
micro-adjusting screw. The blade height is adjustable and the arbor can be
tilted up to 45°, which maks it possible to cut compound miters when used
together with the adjustable miter gage. The saw has a direct current motor
with compound belt drive and a ball bearing arbor. The included tungsten
carbide tipped saw blade is 3 -9/64" (80mm) x 1/16" (1.6mm) x
13/32" (10mm) (24 T). A work piece pusher and a zero clearance blade
insert are included. A dust collection port with a vacuum cleaner adapter comes
with the saw. The Proxxon FET has a table extension on the left side with an
integrated stop for crosscutting longer pieces accurately. The rip fence angle
can be adjusted to insure precision cuts with minimal burning and maximum
accuracy. In addition to the standard machine, we offer an auxiliary sliding
table, a special sliding table for miters, a sliding table for taper legs and a
finger joint jig. Most importantly we have adapted the saw to use blades that
cut very smoothly and accurately. These blades are available in several
thicknesses.
Technical Data
110 -
120V AC. 60Hz. 7,000rpm.
Miter is infinitely adjustable up to 45°.
Table size 12" x 12" (300 x 300mm).
Cutting depth 7/8”" (22mm).
Saw blade diameters between 2”(50mm) & 3-11/32" (85mm).
10 mm center hole & arbor diameter. (Able to use universal slotting
blades with 5/8" bores with an adapter.)
A hollow ground, High Speed Steel blade and adapter is available to accomplish
very fine work and eliminate the need to sand any edges.
Weight approx. 12 lb (6kg).
We teach workshops at shows & at The Guild School.
Classes are listed on the Show Schedule page
The ideal tool for straight, miter and bevel cuts. Useable on any wood type,
non-ferrous metal or plastic. This saw is suitable for all of all your scale
miniature work from crown mouldings to tiny quarter scale accessories. It is so
versatile and durable that it is frequently used by model builders, toy makers,
architects and even cabinetmakers. The smallest items may be cut cleanly,
safely and accurately. The Proxxon FET makes cuts to very tight tolerances. The
edge will require no sanding. There are low noise levels and very little
vibration.
PRICE LIST & PACKAGES
PROXXON
TABLE SAW FET................................ $449.00
SAW & ACCESSORIES FOR FINE WORK
AUXILIARY FENCE..................................................$6.00
2 -1/4 X .028 X 5/8 BLADE .....................................$18.00
5/8” TO 10 MM ADAPTER …………………………….$8.00
PROXXON USERS GUIDE………………………..…$12.00
SAW & ACCESSORIES FOR FINE WORK……….$493.00
OTHER ACCESSORIES FOR MINIATURISTS
2 -1/4” X .064 X 5/8” BLADE (FOR DADOES)…............$18.00
SLIDING TABLE FOR MITERS......................................$35.00
FINGER JOINT FIXTURE…………………………………$30.00
WOODEN ZERO CLEARANCE INSERT …..................$10.00
SLIDING TABLE WITH STOP SYSTEM………………….$50.00
TAPER LEG SLIDING TABLE……………………………….$40.00
TOTAL (For Everything) …………………………………..$676.00
We bring every saw we sell here to individually fit all the fixtures and
install the auxiliary fence. Check with us for delivery information. Guaranteed
against manufacturing defects for two years. Price does not include shipping
from us. If the order cannot be delivered or picked up, there is an additional
charge of about $25.00 for packing, shipping and insurance.
WARNING: This product, when used for soldering, welding or cutting, produces fumes or gases, which contain chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Smaller Than Life Pete & Pam Boorum
79 Sebbins Pond Drive
Bedford, NH 03110 603-669-4185
peteboorum@gmail.com
TILTING ARBOR TABLE SAW
Finger Joint Jig
Accessories Manufactured by Smaller than Life
ZERO CLEARANCE INSERTS for straight and bevel cuts make fine work safer and
easier.
PRECISION HOLLOW GROUND BLADE SYSTEM is needed for smooth cuts with no sanding
required.
AUXILIARY FENCE To permit cuts close to the rip fence such as rabbeted
grooves along edges.
SLIDING TABLE WITH STOP. Effectively enables cutting long or wide sheets safely and
easily. Includes stop for accurate multiple cuts.

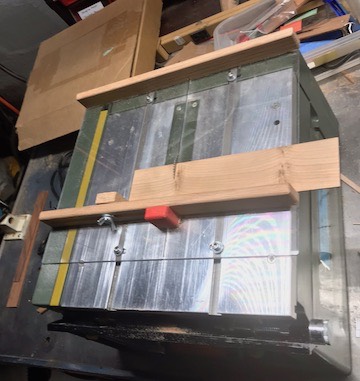

Sliding Table with Stop
SLIDING TABLE FOR MITERS. Is used for cutting picture frames and dollhouse
molding trim quickly and accurately. Two side system is efficient for
moldings.

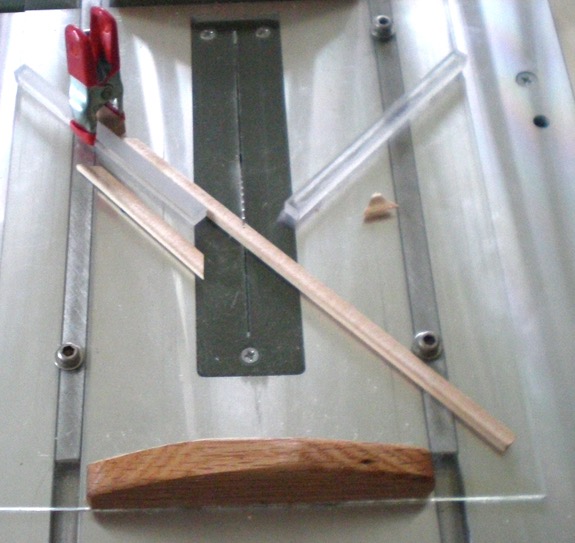

Miter Table

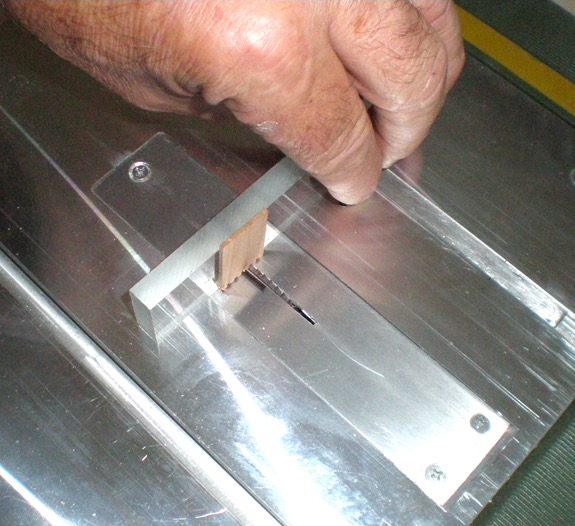

FINGER JOINT JIG. These are the interlocking
joints that resemble through dovetails. The jig is used with an .064”
blade.
TAPER LEG SLIDING TABLE. It is very difficult to hold a leg blank with the conventional
taper jig. We have developed a sliding table to do this easily and safely. The
fixture works with legs that are 1/8” to 1/4” thick.
BLADES OF DIFFERENT THICKNESSES, The blade we use for most miniature cutting is
.028” thick with 60 teeth. There is a .064”- 60T blade used to cut grooves to
fit 1/16” lumber, a .032” – 60T blade to groove for 1/32” lumber, and a .020”
very fine 132 tooth blade for cutting veneer and other thin material.
Pete & Pam Boorum • Smaller Than Life, 79 Sebbins Pond Drive • Bedford, NH
03110 603-669-4185 • peteboorum@gmail.com
To place an order or receive more information contact
peteboorum@gmail.com or call 603-669-4185
Still not sure? Possibly one of our workshops could help you decide if there should be a table saw in your future.
